详细参数
| 参数名称 | 参数值 |
| Source Content uid | TPS60400QDBVRQ1 |
| Brand Name | Texas Instruments |
| 是否无铅 | 不含铅 |
| 是否Rohs认证 | 不符合 |
| 生命周期 | Active |
| Objectid | 2016192925 |

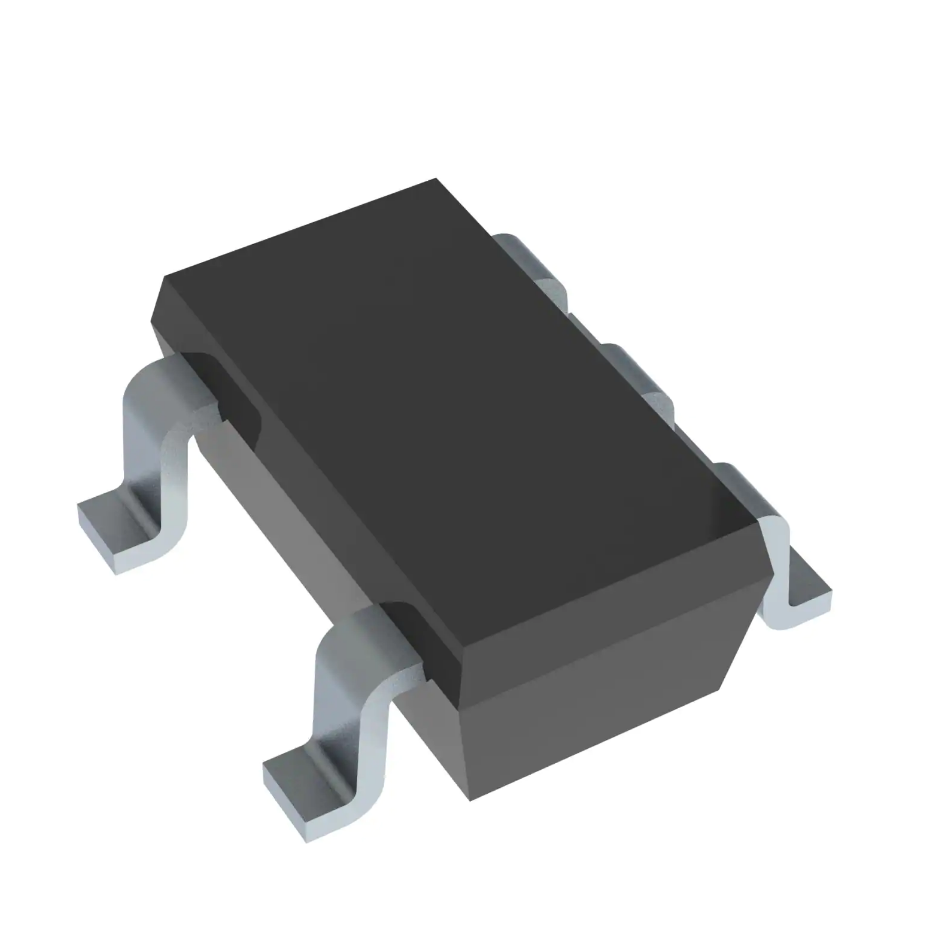

| 零件包装代码 | SOT-23 |
| 包装说明 | LSSOP, |
| 针数 | 5 |
| Reach Compliance Code | compliant |
| ECCN代码 | EAR99 |
| HTS代码 | 8542.39.00.01 |
| 风险等级 | 0.98 |
| Samacsys Description | Automotive Unregulated 60mA Charge Pump Voltage Inverter |
| Samacsys Manufacturer | Texas Instruments |
| Samacsys Modified On | 2021-08-02 16:02:48 |
| 模拟集成电路 - 其他类型 | SWITCHED CAPACITOR CONVERTER |
| 最大输入电压 | 5.25 V |
| 最小输入电压 | 1.8 V |
| 标称输入电压 | 5 V |
| JESD-30 代码 | R-PDSO-G5 |
| JESD-609代码 | e4 |
| 长度 | 2.9 mm |
| 湿度敏感等级 | 1 |
| 功能数量 | 1 |
| 输出次数 | 1 |
| 端子数量 | 5 |
| 最高工作温度 | 125 °C |
| 最低工作温度 | -40 °C |
| 最大输出电流 | 0.06 A |
| 最大输出电压 | -5.25 V |
| 最小输出电压 | -1.8 V |
| 封装主体材料 | PLASTIC/EPOXY |
| 封装代码 | LSSOP |
| 封装形状 | RECTANGULAR |
| 封装形式 | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH |
| 峰值回流温度（摄氏度） | 260 |
| 认证状态 | Not Qualified |
| 座面最大高度 | 1.45 mm |
| 表面贴装 | YES |
| 切换器配置 | DOUBLER INVERTER |
| 最大切换频率 | 250 kHz |
| 温度等级 | AUTOMOTIVE |
| 端子面层 | NICKEL PALLADIUM GOLD |
| 端子形式 | GULL WING |
| 端子节距 | 0.95 mm |
| 端子位置 | DUAL |
| 处于峰值回流温度下的最长时间 | 30 |
| 宽度 | 1.6 mm |
