详细参数
| 参数名称 | 参数值 |
| Source Content uid | MMBT2222ALT1G |
| Brand Name | ON Semiconductor |
| 是否无铅 | 不含铅 |
| 生命周期 | Active |
| Objectid | 1997927778 |

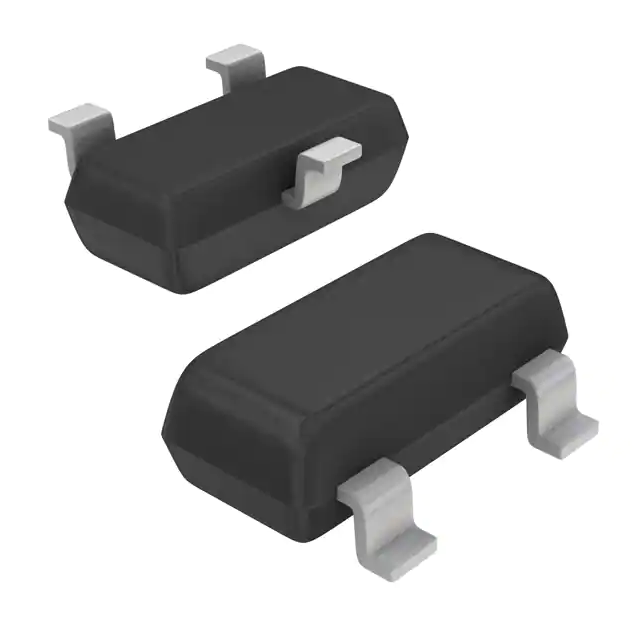

| 零件包装代码 | SOT-23 |
| 包装说明 | SMALL OUTLINE, R-PDSO-G3 |
| 针数 | 3 |
| 制造商包装代码 | 318-08 |
| Reach Compliance Code | compliant |
| Country Of Origin | Mainland China |
| ECCN代码 | EAR99 |
| HTS代码 | 8541.21.00.95 |
| Factory Lead Time | 77 weeks |
| 风险等级 | 0.56 |
| Samacsys Description | MMBT2222ALT1G, NPN Bipolar Transistor, 0.6 A 40 V HFE:35 300 MHz Small Signal, 3-Pin SOT-23 |
| Samacsys Manufacturer | onsemi |
| Samacsys Modified On | 2020-09-02 06:25:41 |
| YTEOL | 7.5 |
| 最大集电极电流 (IC) | 0.6 A |
| 集电极-发射极最大电压 | 40 V |
| 配置 | SINGLE |
| 最小直流电流增益 (hFE) | 75 |
| JEDEC-95代码 | TO-236 |
| JESD-30 代码 | R-PDSO-G3 |
| JESD-609代码 | e3 |
| 湿度敏感等级 | 1 |
| 元件数量 | 1 |
| 端子数量 | 3 |
| 最高工作温度 | 150 °C |
| 最低工作温度 | -55 °C |
| 封装主体材料 | PLASTIC/EPOXY |
| 封装形状 | RECTANGULAR |
| 封装形式 | SMALL OUTLINE |
| 峰值回流温度（摄氏度） | 260 |
| 极性/信道类型 | NPN |
| 最大功率耗散 (Abs) | 0.3 W |
| 认证状态 | Not Qualified |
| 子类别 | Other Transistors |
| 表面贴装 | YES |
| 端子面层 | MATTE TIN |
| 端子形式 | GULL WING |
| 端子位置 | DUAL |
| 处于峰值回流温度下的最长时间 | 30 |
| 晶体管应用 | SWITCHING |
| 晶体管元件材料 | SILICON |
| 标称过渡频率 (fT) | 300 MHz |
| 最大关闭时间（toff） | 285 ns |
| 最大开启时间（吨） | 35 ns |
