详细参数
| 参数名称 | 参数值 |
| Source Content uid | TMS320F2812ZAYA |
| Brand Name | Texas Instruments |
| 是否无铅 | 不含铅 |
| 是否Rohs认证 | 符合 |
| 生命周期 | Active |
| Objectid | 145224785862 |

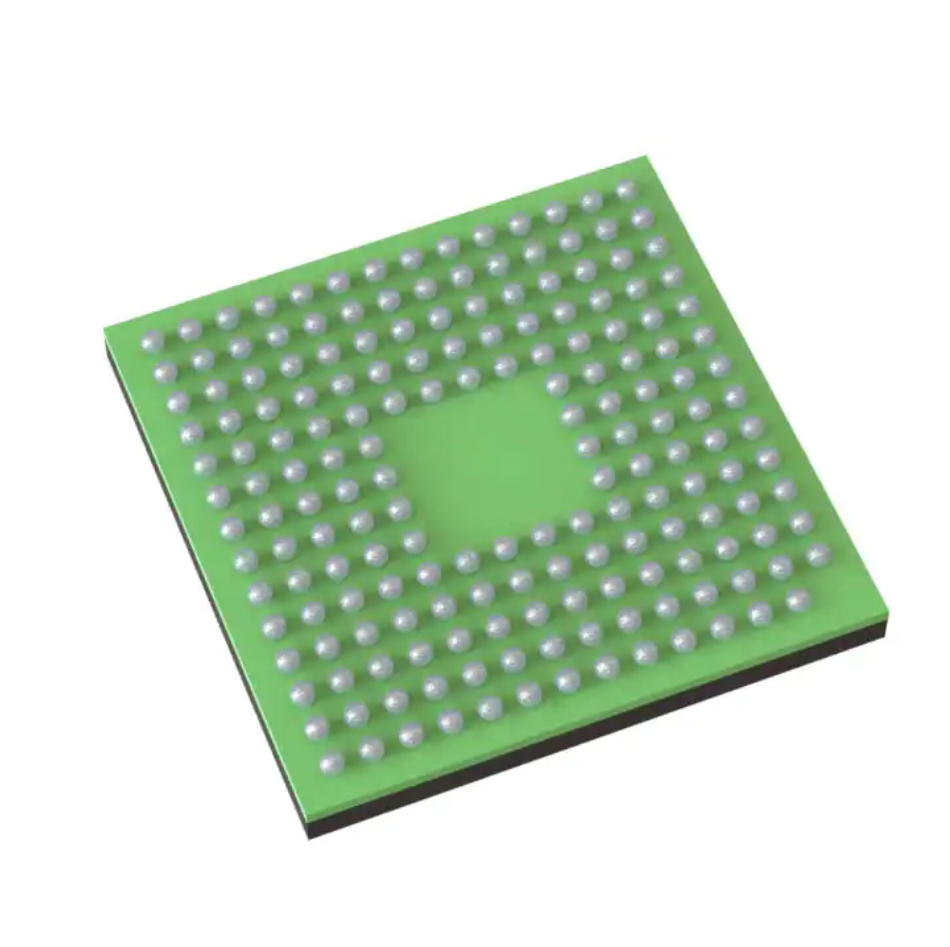

| 包装说明 | LFBGA, BGA179,14X14,32 |
| Reach Compliance Code | compliant |
| ECCN代码 | 3A991.A.2 |
| HTS代码 | 8542.31.00.01 |
| Date Of Intro | 2020-10-09 |
| 风险等级 | 1.9 |
| Samacsys Description | Digital Signal Processors & Controllers - DSP, DSC C2000 32-bit MCU with 150 MHz, 256 KB Flash, EMIF |
| Samacsys Manufacturer | Texas Instruments |
| Samacsys Modified On | 2021-11-06 06:29:09 |
| YTEOL | 15 |
| 其他特性 | ALSO OPERATES AT 1.8 SUPPLY AT 135MHZ |
| 地址总线宽度 | 19 |
| 桶式移位器 | NO |
| 位大小 | 32 |
| 边界扫描 | YES |
| CPU系列 | C28X |
| 最大时钟频率 | 150 MHz |
| 外部数据总线宽度 | 16 |
| 格式 | FIXED POINT |
| 集成缓存 | NO |
| 内部总线架构 | MULTIPLE |
| JESD-30 代码 | S-PBGA-B179 |
| JESD-609代码 | e1 |
| 长度 | 12 mm |
| 低功率模式 | YES |
| 湿度敏感等级 | 3 |
| DMA 通道数量 | |
| 外部中断装置数量 | 3 |
| 端子数量 | 179 |
| 计时器数量 | 7 |
| 片上数据RAM宽度 | 16 |
| 片上程序ROM宽度 | 16 |
| 最高工作温度 | 85 °C |
| 最低工作温度 | -40 °C |
| PWM 通道 | YES |
| 封装主体材料 | PLASTIC/EPOXY |
| 封装代码 | LFBGA |
| 封装等效代码 | BGA179,14X14,32 |
| 封装形状 | SQUARE |
| 封装形式 | GRID ARRAY, LOW PROFILE, FINE PITCH |
| 峰值回流温度（摄氏度） | 260 |
| RAM（字节） | 36864 |
| RAM（字数） | 18432 |
| ROM可编程性 | FLASH |
| 座面最大高度 | 1.4 mm |
| 最大压摆率 | 230 mA |
| 最大供电电压 | 2 V |
| 最小供电电压 | 1.81 V |
| 标称供电电压 | 1.9 V |
| 表面贴装 | YES |
| 技术 | CMOS |
| 温度等级 | INDUSTRIAL |
| 端子面层 | TIN SILVER COPPER |
| 端子形式 | BALL |
| 端子节距 | 0.8 mm |
| 端子位置 | BOTTOM |
| 处于峰值回流温度下的最长时间 | 30 |
| 宽度 | 12 mm |
| uPs/uCs/外围集成电路类型 | DIGITAL SIGNAL PROCESSOR, OTHER |
