详细参数
| 参数名称 | 参数值 |

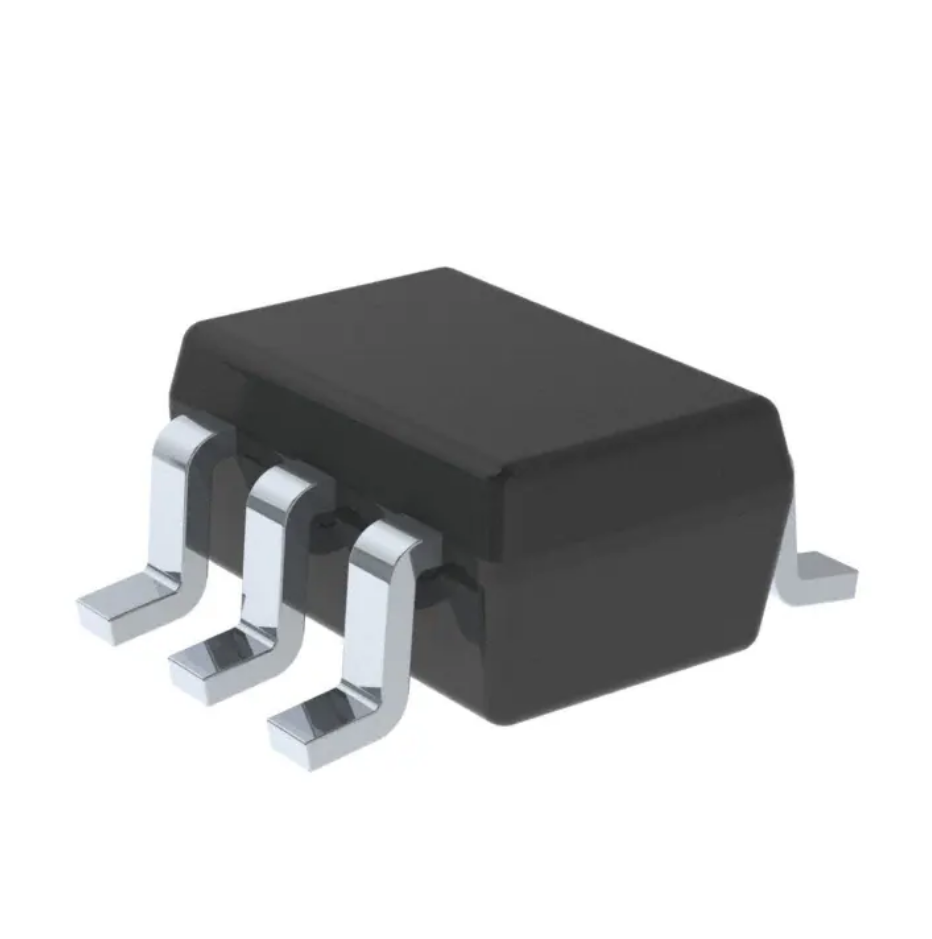

| Source Content uid | TS5A3159DCKR |
| Brand Name | Texas Instruments |
| 是否无铅 | 不含铅 |
| 是否Rohs认证 | 符合 |
| 生命周期 | Active |
| Objectid | 2022523688 |
| 零件包装代码 | SOIC |
| 包装说明 | TSSOP, TSSOP6,.08 |
| 针数 | 6 |
| Reach Compliance Code | compliant |
| ECCN代码 | EAR99 |
| HTS代码 | 8542.39.00.01 |
| 风险等级 | 1.05 |
| Samacsys Description | 1-Ohm SPDT Analog Switch |
| Samacsys Manufacturer | Texas Instruments |
| Samacsys Modified On | 2021-08-02 16:02:48 |
| 其他特性 | 2-CHANNEL MUX/DEMUX |
| 模拟集成电路 - 其他类型 | SPDT |
| 标称带宽 | 100 MHz |
| 最大输入电压 | 5.5 V |
| JESD-30 代码 | R-PDSO-G6 |
| JESD-609代码 | e4 |
| 长度 | 2 mm |
| 湿度敏感等级 | 1 |
| 信道数量 | 1 |
| 功能数量 | 1 |
| 端子数量 | 6 |
| 标称断态隔离度 | 63 dB |
| 通态电阻匹配规范 | 0.7 Ω |
| 最大通态电阻 (Ron) | 3.2 Ω |
| 最高工作温度 | 85 °C |
| 最低工作温度 | -40 °C |
| 输出 | SEPARATE OUTPUT |
| 封装主体材料 | PLASTIC/EPOXY |
| 封装代码 | TSSOP |
| 封装等效代码 | TSSOP6,.08 |
| 封装形状 | RECTANGULAR |
| 封装形式 | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| 峰值回流温度（摄氏度） | 260 |
| 电源 | 2/5 V |
| 认证状态 | Not Qualified |
| 座面最大高度 | 1.1 mm |
| 子类别 | Multiplexer or Switches |
| 最大供电电流 (Isup) | 0.0001 mA |
| 最大供电电压 (Vsup) | 5.5 V |
| 最小供电电压 (Vsup) | 1.65 V |
| 标称供电电压 (Vsup) | 1.8 V |
| 表面贴装 | YES |
| 最长断开时间 | 70 ns |
| 最长接通时间 | 95 ns |
| 切换 | BREAK-BEFORE-MAKE |
| 温度等级 | INDUSTRIAL |
| 端子面层 | NICKEL PALLADIUM GOLD |
| 端子形式 | GULL WING |
| 端子节距 | 0.65 mm |
| 端子位置 | DUAL |
| 处于峰值回流温度下的最长时间 | 30 |
| 宽度 | 1.25 mm |
